Description
Achieve precise radius measurements with this versatile radius gauge measuring tool, ideal for both professional and hobbyist use. With multiple sizes available, it allows you to measure the radii of curved edges, fillets, and other intricate components accurately. Its user-friendly design ensures that you can quickly and easily identify the correct gauge for your project, saving time and increasing efficiency.
Crafted for durability, this radius gauge provides long-lasting performance, even with frequent handling. Its compact and portable design ensures that it can be easily stored in any toolbox or workspace, making it a convenient tool for any project, big or small. Whether working on mechanical repairs or custom fabrications, this tool delivers consistent, high-quality results every time.
This gauge is perfect for use in a variety of fields, including metalworking, woodworking, and automotive repairs. It offers flexibility for precise measurements and adjustments, helping you achieve a high level of accuracy in your work. Add this radius gauge to your toolkit and take your projects to the next level with precision and ease.
| Range Code | Measuring Range (mm) | Measuring Range (inches) |
|---|---|---|

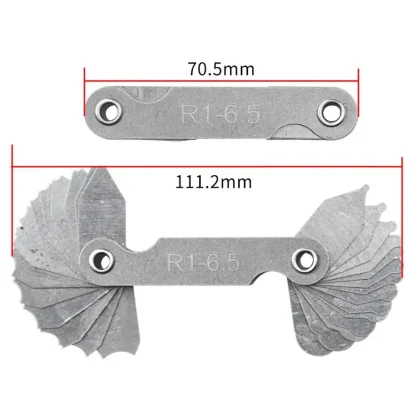

| R1-6.5mm | 1, 1.25, 1.5, 1.75, 2, 2.25, 2.5, 2.75, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5 | 0.039, 0.049, 0.059, 0.069, 0.079, 0.089, 0.098, 0.108, 0.118, 0.138, 0.157, 0.177, 0.197, 0.217, 0.236, 0.256 |

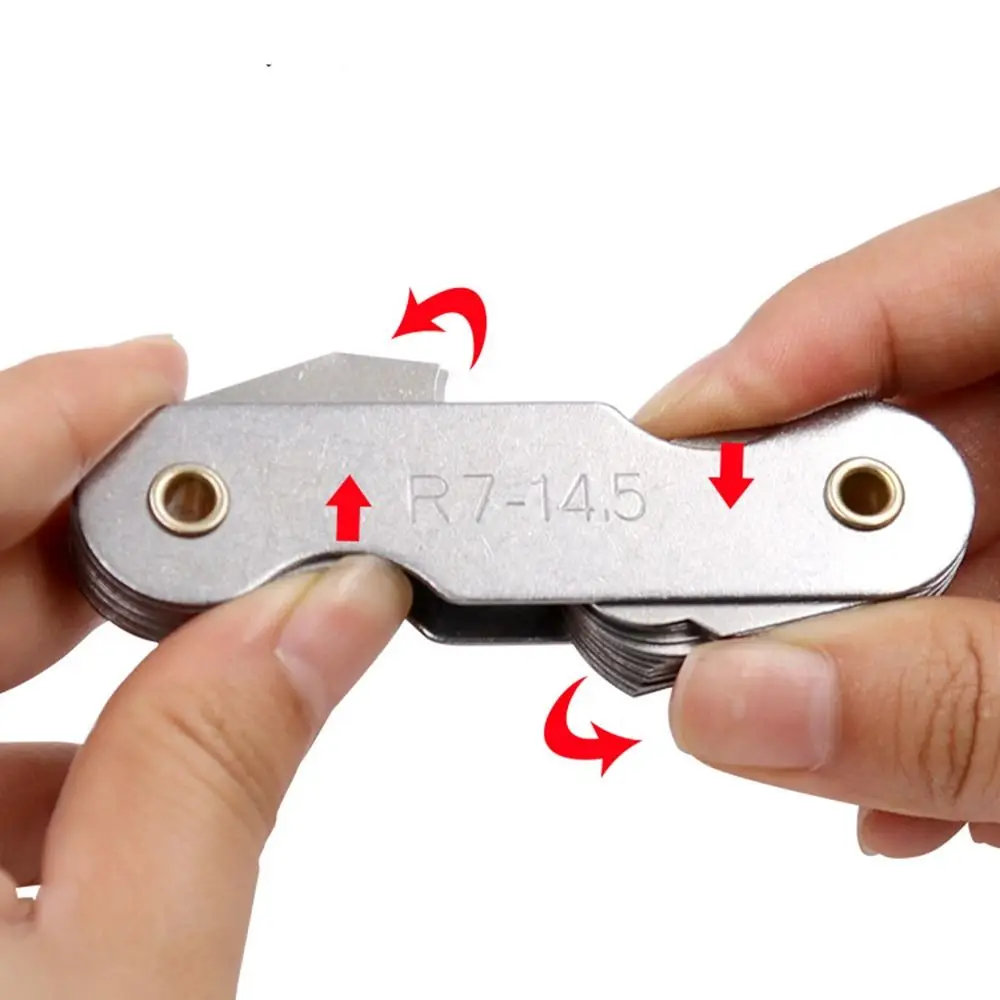

| R7-14.5mm | 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5 | 0.276, 0.295, 0.315, 0.335, 0.354, 0.374, 0.394, 0.413, 0.433, 0.453, 0.472, 0.492, 0.512, 0.531, 0.551, 0.571 |
| R15-25mm | 15, 15.5, 16, 16.5, 17, 17.5, 18, 18.5, 19, 19.5, 20, 21, 22, 23, 24, 25 | 0.591, 0.61, 0.63, 0.65, 0.669, 0.689, 0.709, 0.728, 0.748, 0.768, 0.787, 0.827, 0.866, 0.906, 0.945, 0.984 |
| R26-80mm | 26, 27, 28, 29, 30, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80 | 1.024, 1.063, 1.102, 1.142, 1.181, 1.181, 1.378, 1.575, 1.772, 1.969, 2.165, 2.362, 2.559, 2.756, 2.953, 3.15 |
